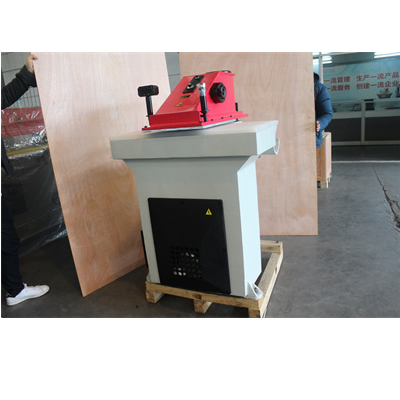

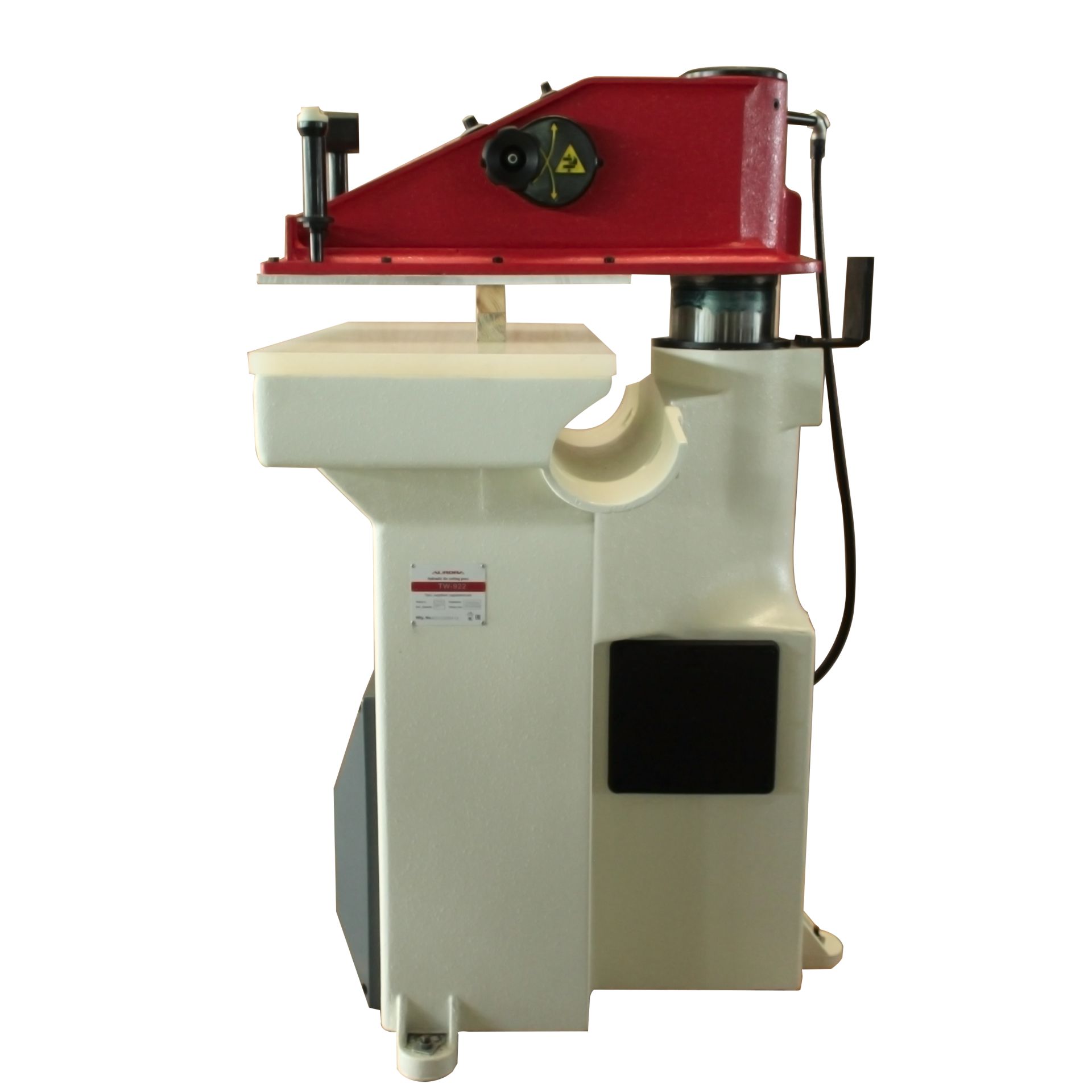

swing arm cutting press TW-925(3+1)
Rocker-arm cutting machine is a kind of cutting machine, used in industry to cut one or more layers of leather, plastic, canvas, nylon, fiber, paper plate and various synthetic materials.
PRODUCT USE AND CHARACTERISTICS
With a lower power consumption,providing a higher cuting speed
(0.75kw pump motor provides 22ton to 28ton cutting power)
· Automatic stroke end adjustment:no need to adjust cut power after
changing die-cut height
Faster setting of height
Higher saving of leather,cutting time,boards
Firm machine body construction,easy operation
·Full safety for operators,higher reliability
main technical specifications
|
Model |
TW-922(1+1) |
TW-925(1+1) |
TW-925L(1+1) |
|
TW-922(3+1) |
TW-925(3+1) |
TW-925L(3+1) |
|
|
Working Table Size（mm) |
900 x 430 |
900 x 450 |
900 x 450 |
|
Swing Arm Width（mm) |
370 |
370 |
500 |
|
Cutting Force（t） |
22 |
25 |
25 |
|
Cutting Stroke（mm) |
90 |
90 |
90 |
|
Motor Power（kW） |
0.75（1HP） |
0.75（1HP） |
0.75（1HP） |
|
Net Weight（with oil）(kg) |
630 |
880 |
900 |
|
Gross Weight（kg） |
745 |
1000 |
1020 |
|
Model |
TW-925S(1+1) |
TW-928(1+1) |
TW-928L(1+1) |
TW-928M(1+1) |
|
TW-925S(3+1) |
TW-928(3+1) |
TW-928L(3+1) |
TW-928M(3+1) |
|
|
Working Table Size（mm) |
1000 x 500 |
1000 x 500 |
1000 x 500 |
1200 x 500 |
|
Swing Arm Width（mm) |
370 |
500 |
610 |
500 |
|
Cutting Force（t） |
25(28) |
25(28) |
25(28) |
22(28） |
|
Cutting Stroke（mm) |
90 |
90 |
90 |
90 |
|
Motor Power（kW） |
0.75（1HP） |
0.75（1HP） |
0.75（1HP） |
0.75（1HP） |
|
Net Weight（with oil）(kg) |
990 |
1030 |
1050 |
1060 |
|
Gross Weight（kg） |
1120 |
1160 |
1180 |
1200 |
